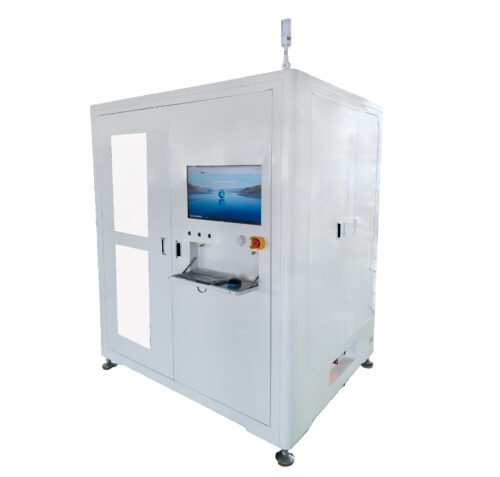

The IMU Advanced Calibration Turntable is designed for the high-precision calibration of IMU boards used in intelligent devices such as drones and robots. It significantly enhances the positioning accuracy of IMU chips.
Optional configurations include a temperature control system and automated IMU board cable connection.
BLADE RIVETING TORQUE TEST TABLE
Description
Automatic test equipment
Core Features & Advantages
High Sensitivity
Equipped with internationally advanced VOC sensors, the system can detect leakage concentrations as low as 1 ppb, ensuring accurate and early detection of even the smallest gas emissions.
High Integration
The VOC analyzer is developed in-house, featuring integrated sensor modules and advanced data processing software. The machine’s design offers excellent mechanical and electrical coordination for smooth and reliable operation.
Modular Design
The entire system is designed with modularity in mind:
-
Modular VOC testing units
-
Independent control modules
-
Replaceable inspection modules and fixtures
This modular structure simplifies maintenance and allows for easy upgrades or customization.
Customizable Solutions
-
The entire system can be customized to meet specific application needs.
-
The self-developed VOC analyzer is fully adaptable and can be functionally customized to integrate seamlessly with the equipment.
Technical Specifications
| Parameter | Specification | ||
|---|---|---|---|
| Model | BT01 (02/03/10/20/30/50 Optional) | ||
| Scanning Range | 0.1NM / 0.2NM / 0.3NM / 1NM / 2NM / 3NM / 50NM | ||
| Scanning Accuracy | ±0.1% F.S. | ||
| Overload Capacity | 120% F.S. | ||
| Operating Temperature | 20°C ± 15°C | ||
| External Dimensions | L500mm × W500mm × H350mm | ||
| Weight | 40kg | ||
