The semi-automatic battery leakage detector is designed for sealing and leakage testing of pouch cells and small power battery packs.
Available equipment types include:
Pouch Cell VOC Leakage Detector
Mass Spectrometry Leakage Detector (Tracer Gas-Free)
This system is ideal for sample inspection on production lines, full inspection of small-sized batteries, and laboratory validation.

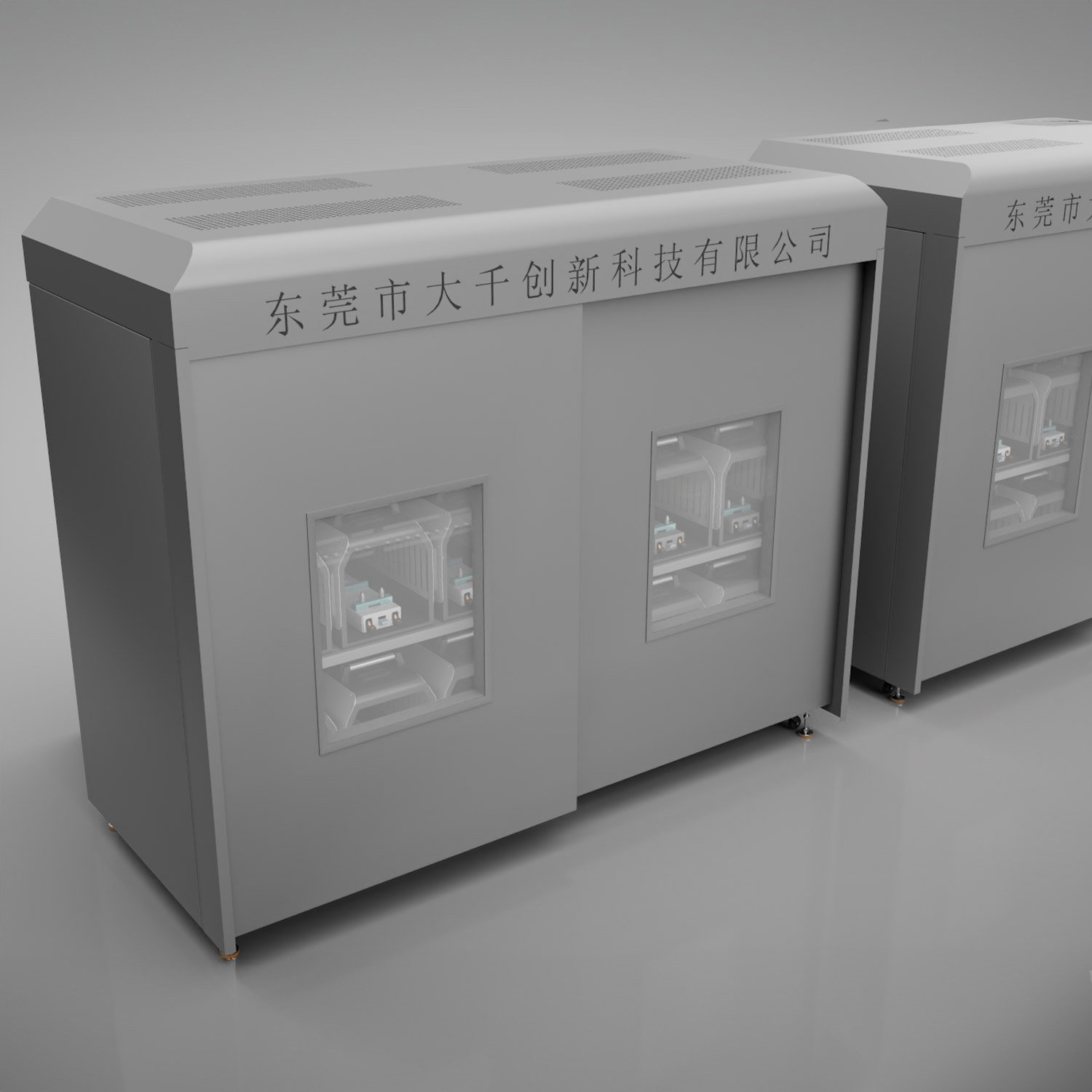

Semi-automatic Battery Leakage Detector
Equipped with internationally advanced VOC sensors, the system can detect leakage concentrations as low as 1 ppb, ensuring accurate and early detection of even the smallest gas emissions.
The VOC analyzer is developed in-house, featuring integrated sensor modules and advanced data processing software. The machine’s design offers excellent mechanical and electrical coordination for smooth and reliable operation.
The entire system is designed with modularity in mind:
Modular VOC testing units
Independent control modules
Replaceable inspection modules and fixtures
This modular structure simplifies maintenance and allows for easy upgrades or customization.
The entire system can be customized to meet specific application needs.
The self-developed VOC analyzer is fully adaptable and can be functionally customized to integrate seamlessly with the equipment.
| Parameter | DQ-TR00X-01 | DQ-TR00X-02 | |
|---|---|---|---|
| Model | DQ4001 | ||
| VOC Analyzer (Optional Mass Spectrometer) |
|||
| Quantity | 1 | 2 | |
| Sensitivity | 1 ppb | 1 ppb | |
| Detection Range | 1–40,000 ppb | 1–40,000 ppb | |
| Self-Diagnosis | Standard | ||
| Testing Structure | |||
| Standard Test Cycle | 55s | 55s | |
| Chamber Size | Customizable | Customizable | |
| Number of Test Chambers | 1 | 2 | |
| Auto Calibration | Optional | Optional | |
| Control System | |||
| Main Controller | PLC | PLC | |
| Data Management System | Optional (Industrial PC + Data Management Software) | ||
